AAC blockwork · Samrya Tower, Dafna
03AAC systems // F
It does
not burn.
Fire-rated and lightweight AAC blocks for towers, hotels, malls, tunnels and plant: four hours at 100 mm, one-fifth the weight of concrete block.
00Mission
Four hours.
One-fifth the weight.
System F is AAC blockwork: inorganic, non-combustible and rated four hours at 100 mm by Qatar Civil Defence. The blocks weigh a fifth of concrete block, lay with thin-bed mortar and insulate five times better, so they go into towers, hotels, malls, tunnels and fire walls at QP, RasGas and Ras Laffan.
5×The insulation of CMU
7 hrAAC walls held in a Qatar mall fire
4 hrFire rating at 100 mm
1/5The weight of concrete block

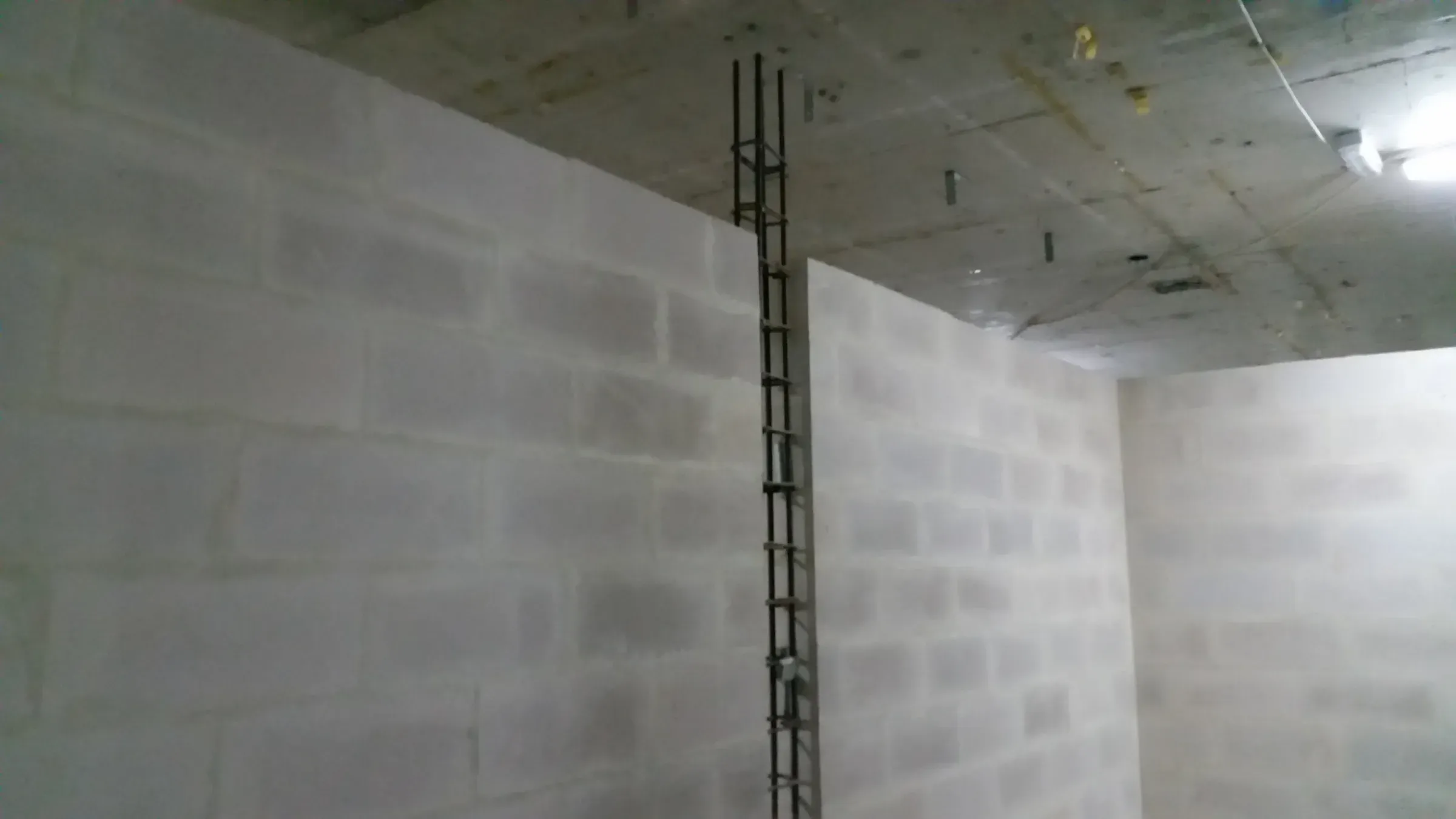

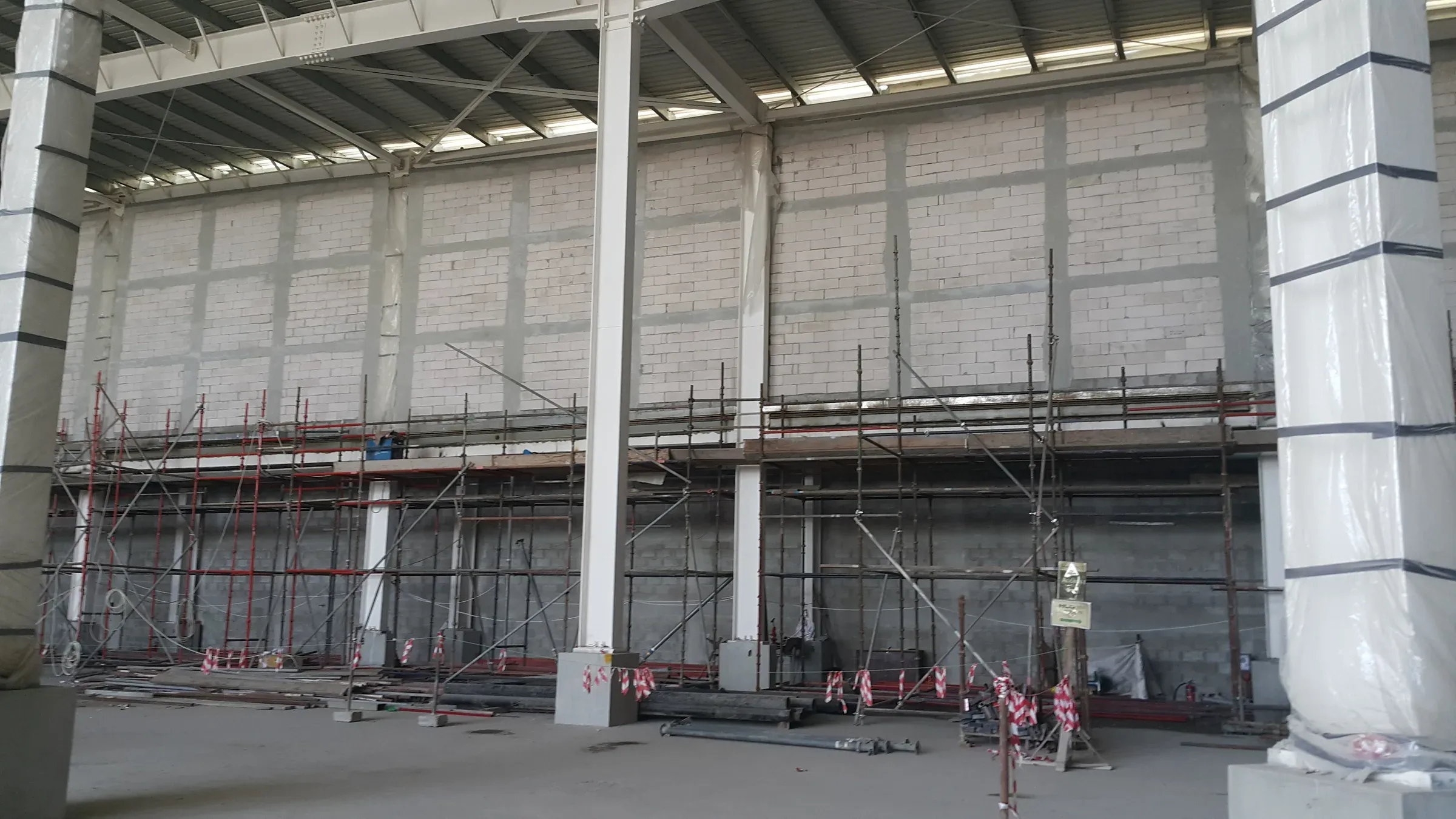

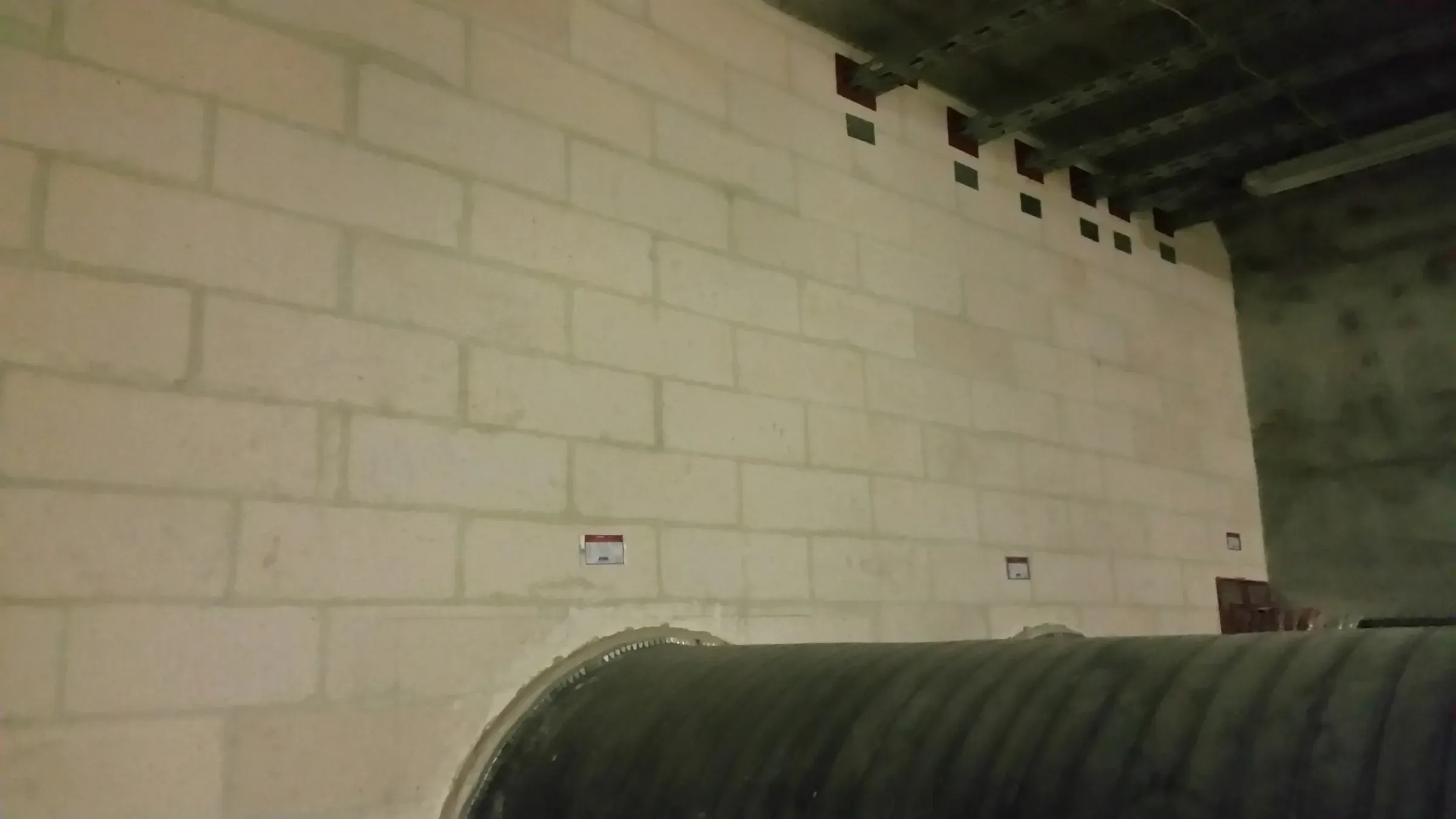

01System F
Fire & lightweight blocks.
Fire walls, shaft walls, infill and load-bearing blockwork: 600 × 200 × 200 mm blocks in 100 to 250 mm thicknesses, laid with thin-bed mortar that sets in about five minutes.
| Fire rating | Minimum 4 hours at 100 mm 20 min MF, 15 min PIR |
| Thermal conductivity | K 0.14 W/m²K K 0.32 for others |
| Permitted floor load | 350 kg/m² 100 kg/m² for others |
| Melting point | Over 1,600 °C Steel structure melts first |
| Fumes | None: inorganic, Class A Toxic from composites |
| Weight | 550 kg/m³ About 2,200 kg/m³ concrete block |
02Technical data
The numbers
behind the system.
Values from GGI technical data sheets. Project-specific calculations, span tables, fire certificates and drawings on request.
| Standard block | 600 × 200 × 200 mm Other thicknesses and heights available |
| Thickness | 100, 150, 200, 250 mm Hordi blocks for slabs |
| Mortar | Thin-bed, sets in about 5 minutes Glue mortar only |
| Density | 550 kg/m³ Maximum 650 kg/m³ |
| Strength | 4.0 MPa To QCS 2010 |
| 100 mm non-load-bearing | 4 hours UL-classified |
| 150 mm load-bearing | 4 hours UL-classified |
| 150 mm fire block | 7 hours to ASTM 4 hours to Qatar Civil Defence |
| 75 mm partition | 3 hours |
| Mall fire, Qatar | 7 hours Steel melted; AAC needed paint and plaster only |
Fire test certificates and Qatar Civil Defence approval available on request.
03Details
Where it is used.
- The Pearl
24 parcels of towers in AAC blocks and lintels, 2007 to 2015
- Hotels
Waldorf Astoria, Hilton City Center, DoubleTree Al Sadd, InterContinental
- Towers
Samrya and Arwa towers, Dafna; Viva Bahriya, The Pearl
- Tunnels and plant
Lusail tunnel fire walls; fire walls at QP, RasGas and Ras Laffan
- Malls
Gulf Mall, North Gate Mall, Place Vendome, Immadi Mall, Al Meera
- Sport and schools
Al Sadd Sports Club; Equestrian Club; Vision International School
04Deployed
4 hours

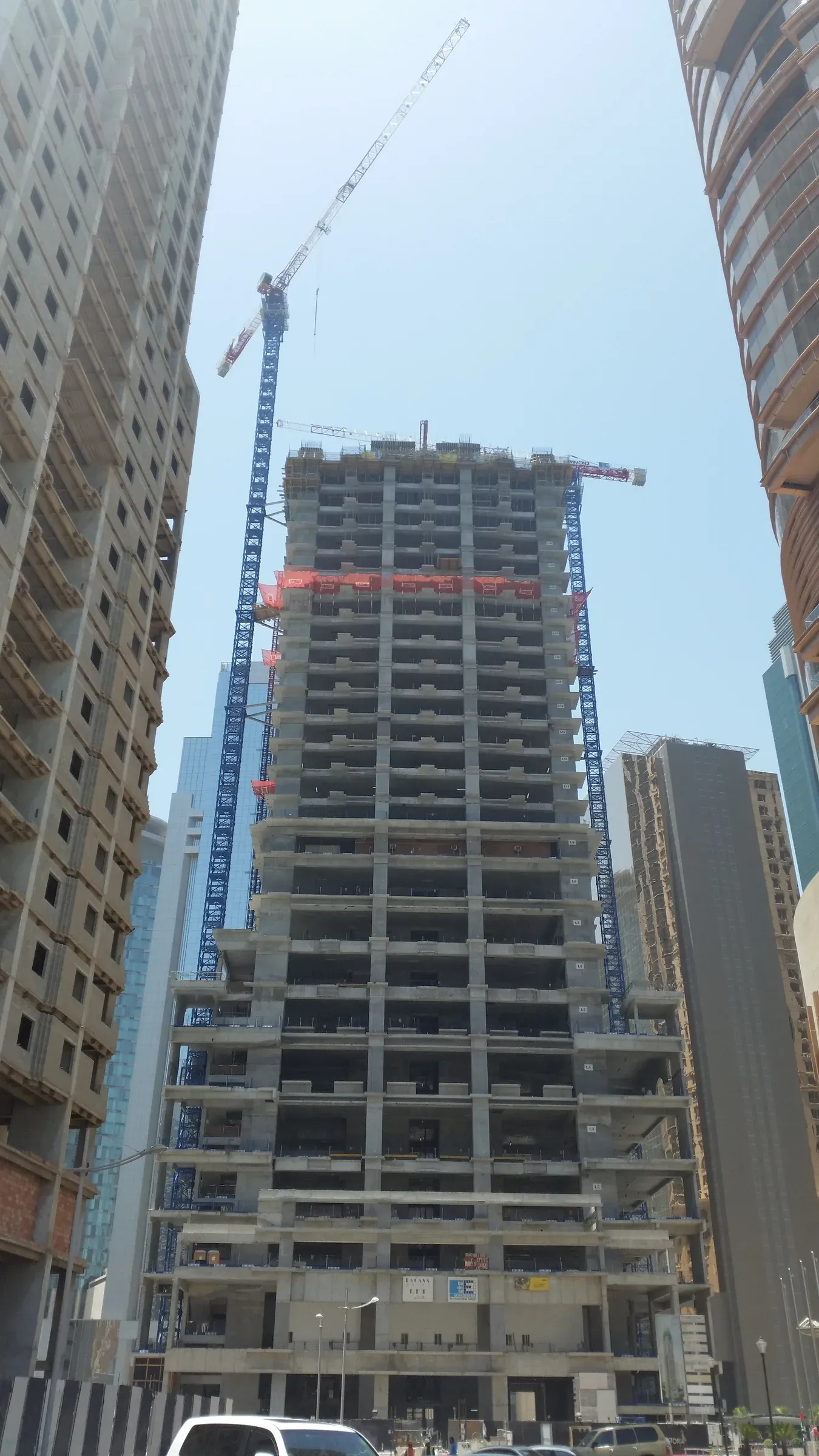

Fire-rated AAC blockwork · Waldorf Astoria · 47 floors
Lightweight fire-rated blocks on every floor of a tower: less load on the frame, four-hour compartment walls and no fireproofing.
05Projects
Delivered
in System F.
- InterContinental, The City
- Arwa Tower
- Viva Bahriya, The Pearl
- Place Vendome
- Vision International School
- Hilton City Center
- Gulf Mall
- Lusail tunnels
- Al Sadd Sports Club
- All projects →
06Contact
Start a
project.
Send us the drawings, the quantities or just the idea. A GGI engineer replies with a system, a programme and a price.
