Insulated
outside.

Exterior insulation and finish systems over AAC: insulation board, base coat, mesh and textured finish on a wall that already insulates.

System EIFS · EIFSISO 9001 · ISO 14001 · ISO 45001 · ICV certified

00Mission

Insulation on insulation.

EIFS over AAC puts a bonded insulation board, reinforced base coat and textured finish on the outside of an AAC wall. The AAC already gives U 0.55 at 200 mm; EIFS takes the envelope further and gives the architect mouldings, cornices and colour.

0.55U-value of the AAC wall alone

60%Less HVAC from the envelope

AnyProfile, cornice or texture

4 hrFire rating of the AAC

01System EIFS

EIFS.

Exterior insulation and finish over AAC walls and cladding: insulation board bonded to the AAC, base coat with mesh, primer and textured topcoat, with mouldings and quoins formed in the system.

Layers
Substrate	AAC wall panel or cladding, coated and levelled
Adhesive	Cementitious adhesive to the AAC
Insulation	EPS or mineral wool board Mechanically fixed where required
Base coat	Polymer-modified base coat with alkali-resistant mesh
Finish	Primer and textured acrylic or silicone topcoat

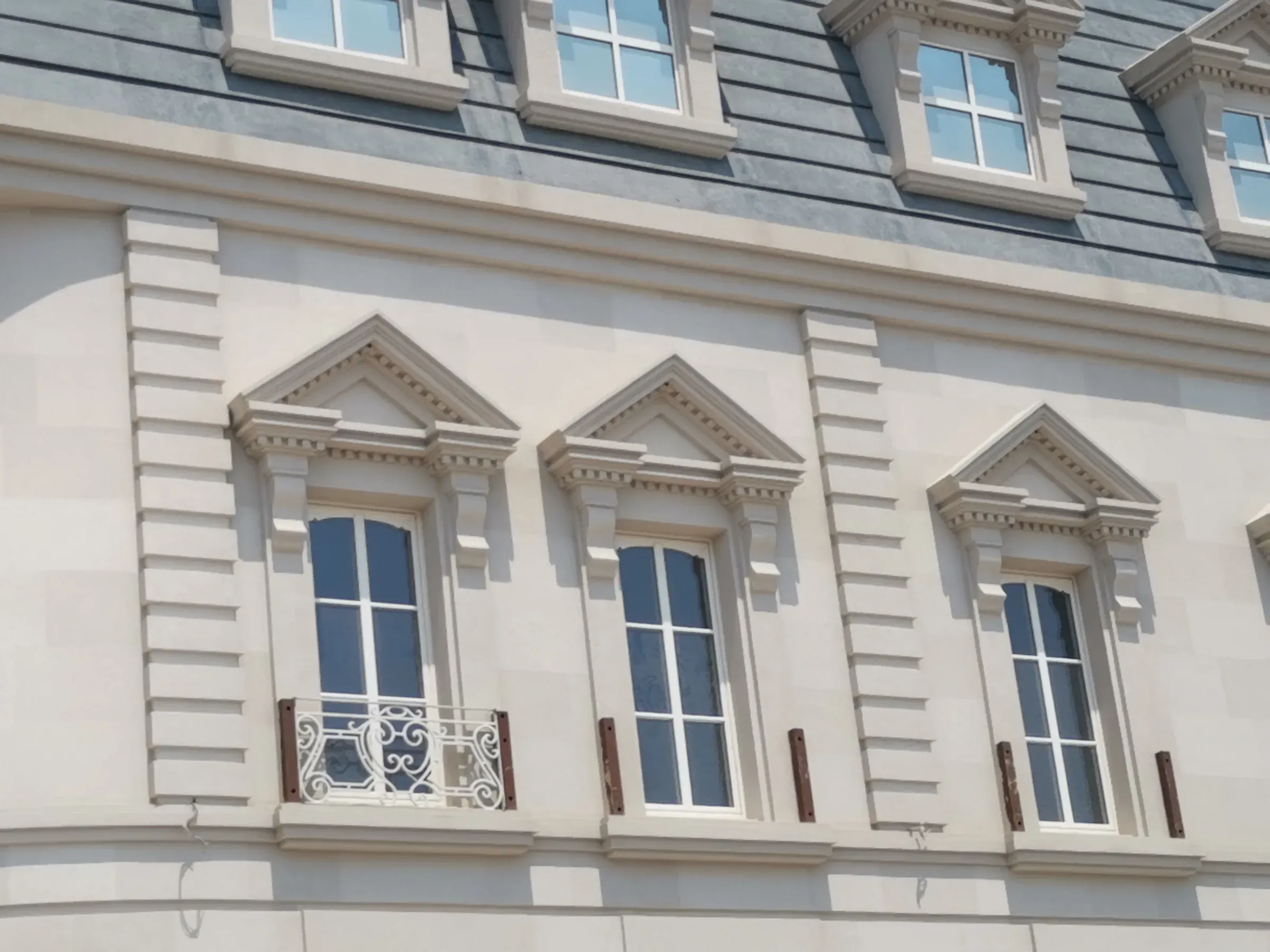

Details	Mouldings, cornices, quoins and window surrounds in the system

02Technical data

The numbers
behind the system.

Values from GGI technical data sheets. Project-specific calculations, span tables, fire certificates and drawings on request.

Build-up
Insulation board	30 to 100 mm EPS or mineral wool
Base coat and mesh	3 to 5 mm Alkali-resistant mesh
Finish	1.5 to 3 mm Textured, any colour

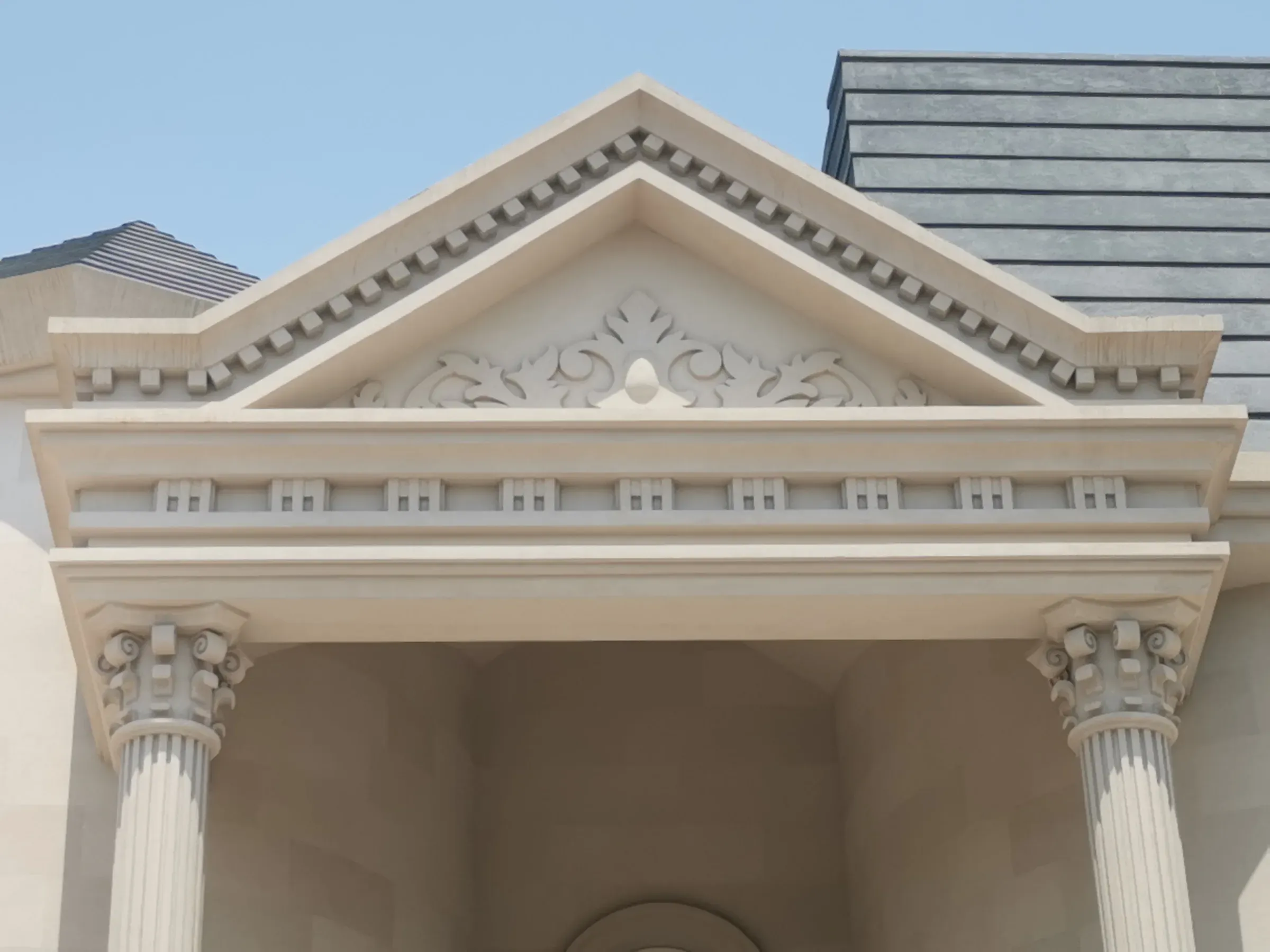

Mouldings	Formed in EPS, coated Cornices, quoins, surrounds

Performance
Envelope U-value	Below 0.35 with 50 mm EPS Calculation on request
Water	Drained and sealed at openings Membrane at parapets
Impact	Reinforced mesh at ground floor Double mesh
Maintenance	Washable; repaint cycle 10 years
